The Winnebago View is available in three floorplans, offering versatility for the Mercedes Benz Sprinter Chassis RV customer!

Get Internet Price

By requesting a price quote or seeking information from Lichtsinn RV, you agree to receive information periodically about ongoing specials. Should you no longer wish to receive information, instructions for removal are included with every email received. Lichtsinn RV will not release your information to third parties.

The Winnebago View is available in three distinct floorplans with very different sleeping accommodations. The Winnebago View 24D with the Murphy+ Bed, the Winnebago View 24V with the rear twin bed flex bed system and the View 24T with the Murphy+ Bed. The Winnebago View 24D offers your choice of a U-Shaped Dinette or Theater Seating, while the Winnebago View 24V offers your choice of a TrueComfort+ Sofa or Dual Recliners. The all-new View 24T is unique in that it provides significant storage with a rear garage. See the Winnebago View Floorplans below.

Continue to scroll down and you will find Specifications on the Winnebago View Mercedes Benz Sprinter Chassis, Winnebago View Heating and Cooling Systems, Winnebago View Electrical Systems and the Winnebago View Plumbing System.

Winnebago View Floorplans

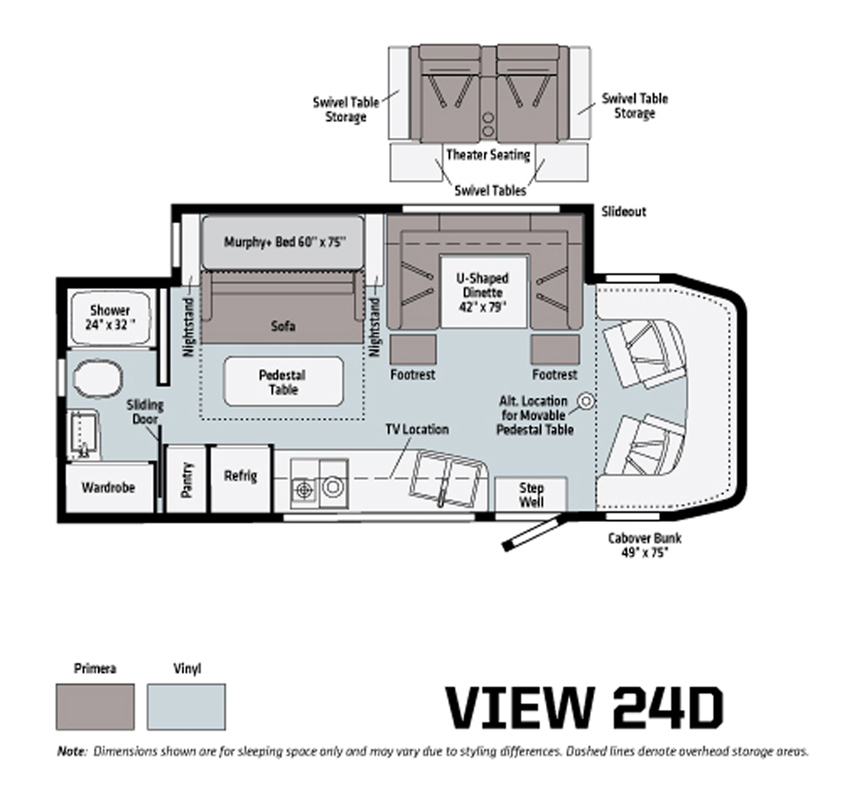

Winnebago View 24D

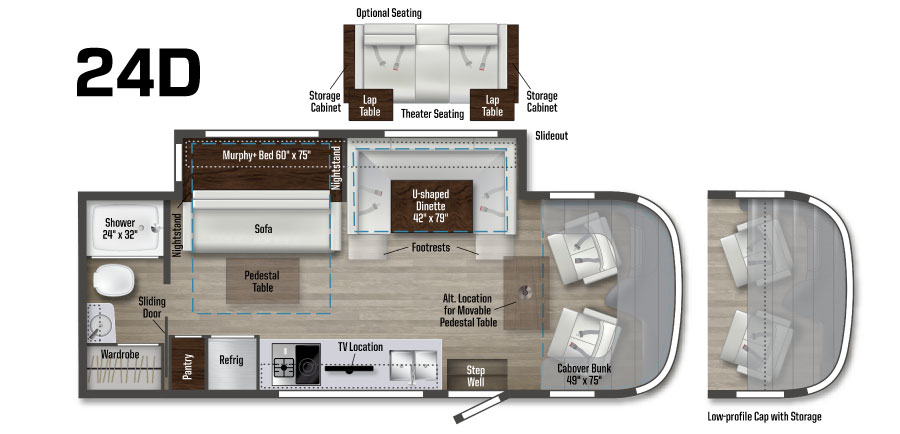

Winnebago View 24D Floorplan

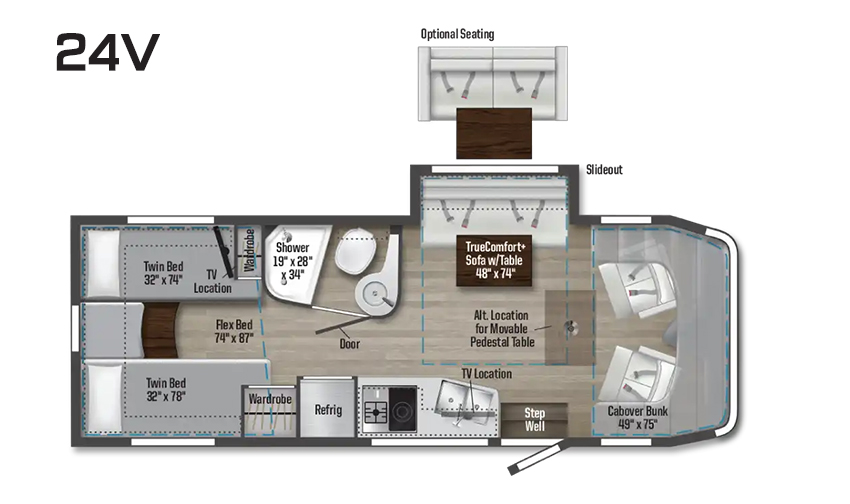

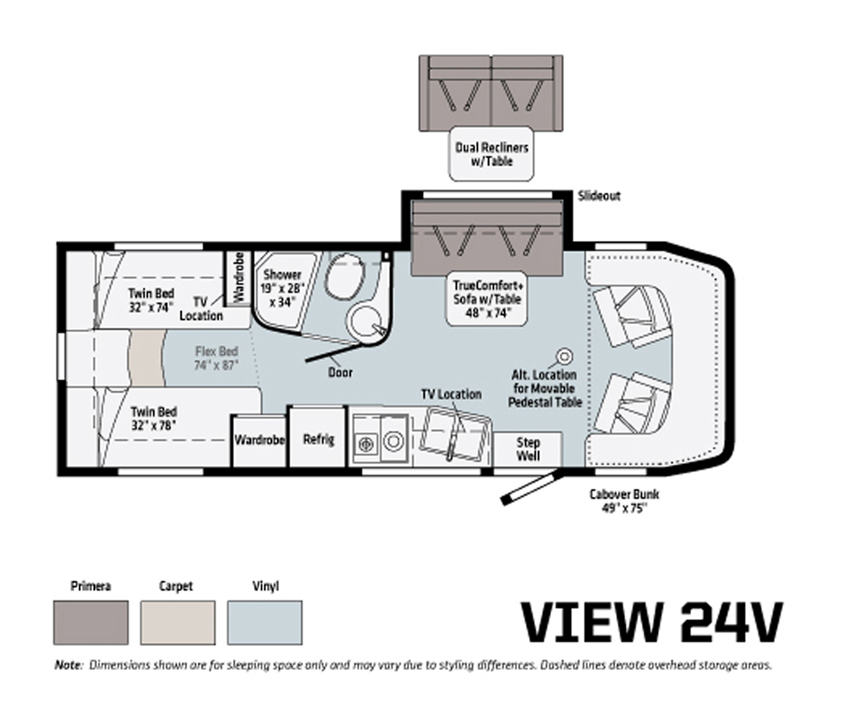

Winnebago View 24V

Winnebago View 24V Floorplan

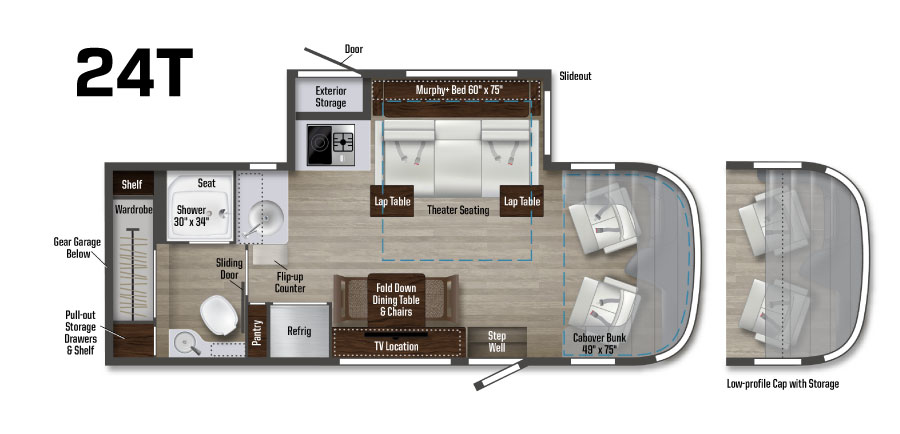

NEW Winnebago View 24T

Winnebago View 24T Floorplan

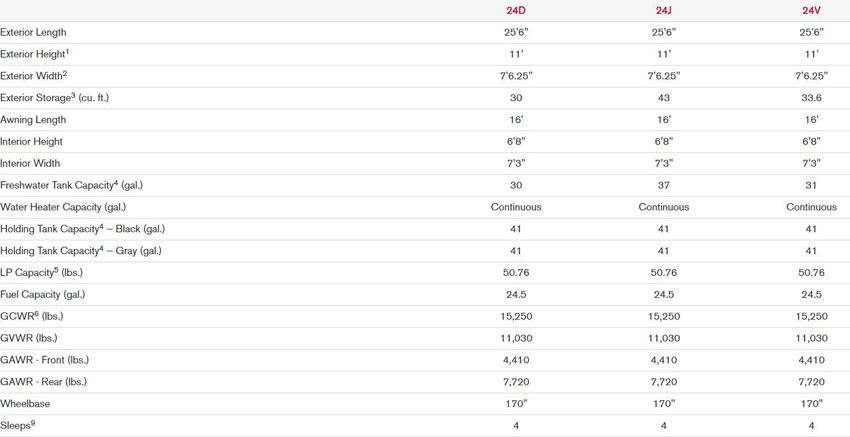

Winnebago View Specifications

*Specifications for Winnebago View 24T Coming Soon

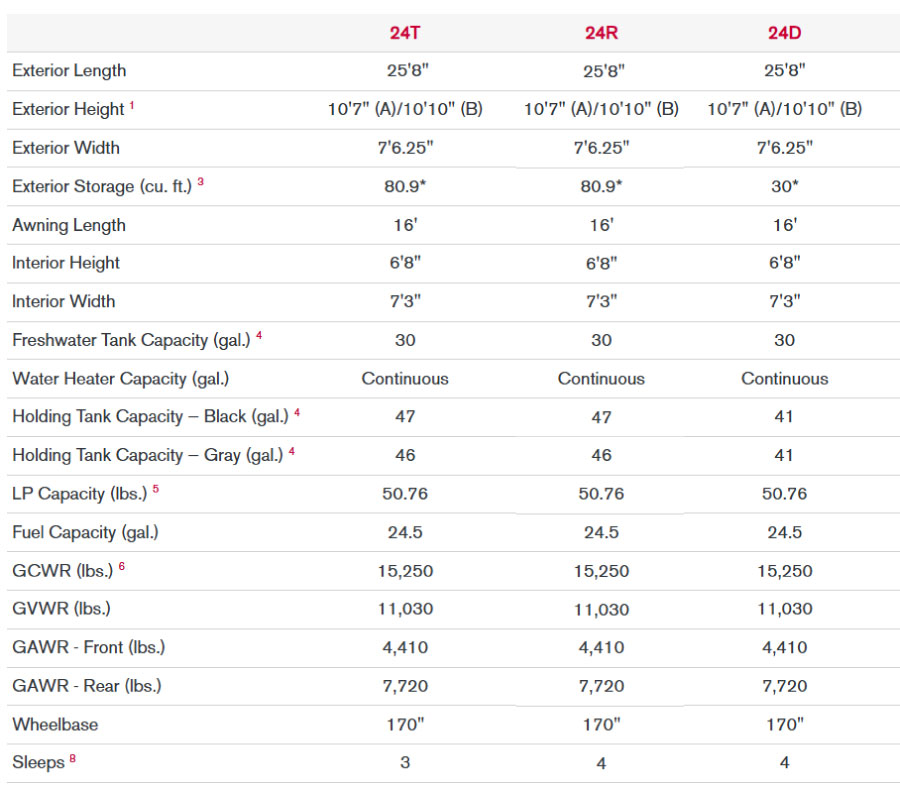

Winnebago View Specification Chart


  • Mercedes-Benz Sprinter Chassis
  • 3.0 L 6-cylinder, 188-hp, turbo-diesel engine 7G -Tronic automatic transmission, 220-amp. alternator
  • Adaptive ESP technology
  • Hydraulic brakes w/ABS
  • Trailer Hitch6 5,000-lb. drawbar/500-lb. maximum vertical tongue weight w/7-pin connector
  • Stylized aluminum wheels
  • OPTIONAL: Hydraulic leveling jacks w/automatic controls (front and rear)

Heating and Cooling System

  • 15,000 BTU air conditioner w/heat pump
  • 20,000 BTU low-profile ducted furnace

Electrical System

  • Service Center light, cable TV input, 30-amp. power cord, portable satellite dish hookup, QuickPort® service connection hatch
  • Automatic dual battery charge control
  • Exterior AC duplex
  • Exterior antenna jack
  • Generator auto transfer switch
  • Battery disconnect system (coach)
  • AC/DC load center/converter unit
  • 2 deep-cycle, Group 31 RV batteries
  • 3,600-watt Cummins Onan® MicroQuiet™ LP generator
  • 2,000-watt pure sine wave DC/AC inverter
  • (2) 100-watt solar panel/battery charger w/controller, junction box, and plug for additional portable solar panel
  • OPTIONAL: Lithium Ion Smart Batteries
  • OPTIONAL: 3,200-watt Cummins Onan® Diesel generator

Plumbing System

  • Service Center — color-coded labels, pressurized city water hookup/tank diverter valve, drainage valves, exterior wash station w/lighted pump switch
  • Truma AquaGo® Comfort Plus Tankless water heater
  • TrueLevel™ holding tank monitoring system
  • Heated drainage system
  • 10' sewer hose
  • Winterization Package water heater bypass valve and siphon tube
  • On-demand water pump
  • Lockable water tank fill
  • Sewage pump macerator (24V)
  • Permanent-mount LP tank w/gauge
  • LPG accessory connection (patio area)
  • Black holding tank flushing system
